Description
Briggs & Stratton 40N8770087G1 replacement engine.
Specifications
- Our Briggs & Stratton 40N8770087G1 (656 cc) engine is compatible as a replacement for the Briggs & Stratton 40H777-0116-E1 (656 cc) engine installed on the CRAFTSMAN ZT 7000 (107.277740) mower.
- NOTICE:
- If your engine model number starts with 40 , it means the engine has a 656 cc displacement . Both your old engine and our new replacement have the same 656 cc displacement .
- Our 20 gross HP engine provides sufficient power to replace your old engine. If you don’t mind having slightly more or less horsepower than your original engine, feel free to proceed with the purchase.
- Briggs and Stratton vertical engine
- 20 Gross HP
- 656cc
- EXi200
- "V" Twin Cylinder
- OVERHEAD VALVE DESIGN (O.H.V.) design
- Cast Iron Cylinder Sleeve
- VERTICAL Crankshaft
- 12V HD Electric Start
- 9 AMP Alternator
- Crankshaft drilled/tapped 7/16-20 crankshaft, ready for bolt
- Choke-A-Matic
- Oil Filter
- Fuel Pump
- NO Muffler
- NO Gas Tank
- No Trim Ring Provided

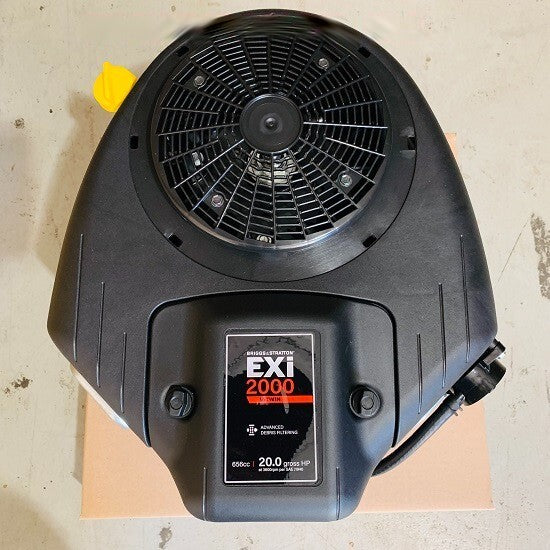

- Photo actual engine
- Notice: The following is for mower with a separate choke cable:
- Your mower may have a separate cable to connect to the choke device of your engine. Our engine has a Choke-a-matic feature.
- What this means is that the choke and throttle device connect to the
- same cable. If you push the throttle lever all the way up, it will choke
- the engine. So you will have to mark on your throttle lever where is
- the maximum point. If you pass that point, you will choke the engine. We
- think you may be able to transfer the choking device/control from your
- old engine to the new one or you can always get a combined
- choke-throttle lever with cable from a local mower shop that fits your
- mower.
- Consumer or Residential use
- Commercial or Rental use
- 24 Months
- 12 Months
| Brand | Briggs & Stratton |
|---|---|
| Model | 40N8770087G1 |
| Engine size | 656cc |
| Horsepower | 20 gross HP |
| Crankshaft | Vertical |
| Application | Lawn Mower |
| Type | LAWN MOWER REPLACEMENT Engine |
| Fits machine brands | Craftsman , Cub Cadet , Exmark , Husqvarna , John Deere , Simplicity , Snapper |
Additional information
| Shaft | Vertical Crankshaft |
|---|---|
| Horsepower | 20 – 25 HP |
| Engine Size | 600 – 799cc |
| Fits Machine | Craftsman, Cub Cadet, Exmark, Husqvarna, John Deere, Simplicity, Snapper |
| Equipment | Zero-Turn Mower |
| Brand | Briggs & Stratton |
| Brand | Briggs & Stratton |
| Type | LAWN MOWER REPLACEMENT Engine |
| Crankshaft Direction | Vertical |
| Horsepower | 20 gross HP |
| Engine Size | 656cc |
| IndoorOutdoor | Outdoor |
| Model | 40N8770087G1 |
| Application | Lawn Mower |
Briggs & Stratton 40N8770087G1 656cc 20 gross HP Engine
$1,295.00Warranty
Every engine carries a 30-day warranty from the date of delivery against defects, unless the product listing states otherwise.
Where a listing says no manufacturer warranty applies, our 30-day warranty is the warranty that applies. Full terms are in our Terms & Conditions.
Shipping & 30 Days Return
Free shipping to all 50 US states (including Alaska, Hawaii and Washington, DC). Orders are dispatched within 5 business days, and delivery usually takes 3–7 business days after dispatch. We do not ship to US territories, PO Boxes or APO/FPO addresses. See our Shipping Policy.
Free 30-day returns: return an unused, uninstalled engine in its original packaging within 30 days of delivery for a full refund. We pay the return shipping and there is no restocking fee. See our Return & Refund Policy.
Specification
Check the shaft, horsepower and model details below against your old engine before ordering. Not sure it fits? Ask us first.
| Brand | Briggs & Stratton |
|---|---|
| Model / MPN | 40N8770087G1 |
| Shaft | Vertical Crankshaft |
| Horsepower | 20 – 25 HP |
| Engine Size | 600 – 799cc |
| Fits Machine | Craftsman, Cub Cadet, Exmark, Husqvarna, John Deere, Simplicity, Snapper |
| Equipment | Zero-Turn Mower |
| Type | LAWN MOWER REPLACEMENT Engine |
| Crankshaft Direction | Vertical |
| Horsepower | 20 gross HP |
| Engine Size | 656cc |
| IndoorOutdoor | Outdoor |
| Model | 40N8770087G1 |
| Application | Lawn Mower |
